Suitable for Class 1 Division 2 applications - Groups A,B,C & D
Up to 2000 m2 (21,520 sq. ft.) coverage
Up to 4 inlet pipes
Total pipe length up to 360 m (1181 ft)
Five (5) high intensity status LEDs for greater visibility
Robust absolute smoke detection
Intelligent Filter (patent pending)
Lint Trap to capture fibrous particulates
Sub-sampling Probe (inertial separator)
Pw-series intelligent control systems
Out-of-the-box installation and commissioning
Ultrasonic airflow sensing
Laser-based absolute smoke detection
Pre-engineered pipe network designs
Programmable alarm thresholds
Clean air barrier optics protections
Instant recognition display
Instant Fault Finder™
AutoLearn™ Smoke
AutoLearn™ Flow
VESDA Accessories

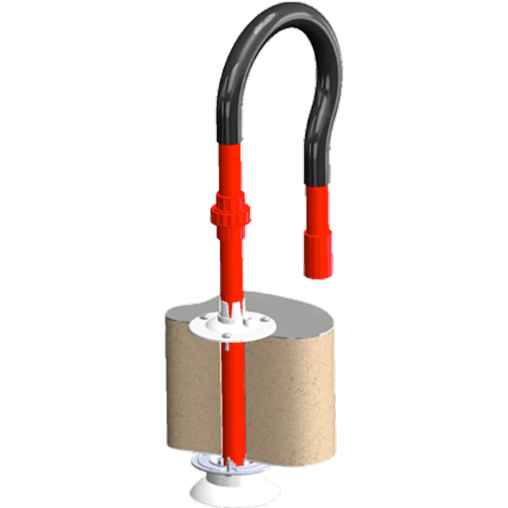

Refrigerated Storage Sampling Kit
Suited for facilities with and without ceiling cavities
Enables the ASD pipe to be installed, inspected and maintained outside the Refrigerated Storage facility hence enabling fire contractors to work in ambient conditions most of the time
Eliminates the need for expensive HDPE (high density polyethylene) pipe inside the Refrigerated Storage facility
Eliminates the need for heat tracing

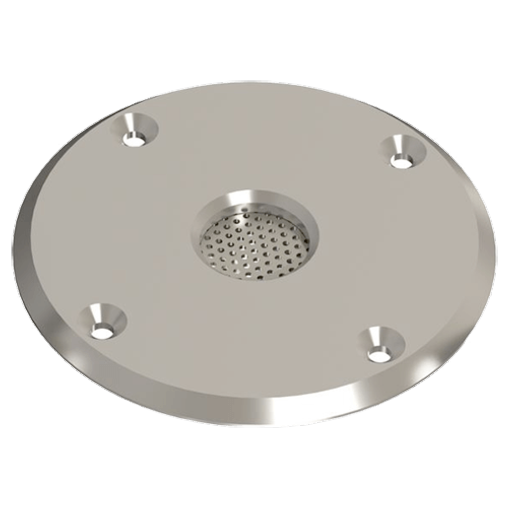

Tamper Proof Sampling Point
Quality robust construction
Hidden detection -- concealed
Tamper proof design
New and retrofit friendly
Convenient testing and maintenance location via a centrally and remotely mounted detector
Standard pipe and capillary tube interfaces
Metric and imperial
Flush Mount Sampling Point
Suitable for all Xtralis Aspirating Smoke Detectors providing a standard solution
Adjustable wing-lock height to accommodate different ceiling panel thicknesses
Incorporates text compliant with codes and standards
Designed for secure connection through push fit
Tapered sampling hole helps resist clogging
VESDA Power Supply
120 VAC (+10% / -15%); 60Hz; 1.4 amp max.
1.5 amp continuous supply current at 27.6VDC
Filtered and electronically regulated output
AC fail supervision
Low AC (brown-out) supervision
Battery supervision
Built-in charger for sealed lead acid or gel-type batteries
VESDA-E & VESDA Filters
Easy swap replacement filter
Fits VESDA VLC, VLF, VLP and VLS detectors
Available singly or in packs of 20
Field replaceable filter
Coarse particle filtering
Effective filtration and optical protection with clean air barriers ensures lifetime detection performance
Built-in charger for sealed lead acid or gel-type batteries
Xtralis In-Line Filter
Suitable for all Xtralis Aspirating Smoke Detectors
Improved detector longevity in applications with high levels of air-borne contamination
Reduces maintenance intervals, thus reducing total cost of ownership
Requires no additional pipe fittings thus reducing cost of installation
